Plastic Injection Thin Wall Mold Speeds Production

Plastic injection thin wall food container mold is a precision tool that enables the high-speed production of lightweight takeout boxes, deli containers, and food storage lids. These molds are specifically designed to produce parts with wall thicknesses significantly lower than standard injection molded products, typically ranging from 0.3 to 1.5 millimeters, compared to 2 to 4 millimeters for conventional containers.

The defining challenge of a plastic injection thin wall food container mold is filling the cavity before the molten plastic solidifies. Thin wall cavities offer little space for plastic to flow, and the plastic cools rapidly due to the small cross-section. To overcome this, thin wall molds incorporate multiple injection gates that allow plastic to enter the cavity at several points simultaneously. The mold is also designed with larger than normal runners and gate openings to reduce flow resistance.

The steel used for a plastic injection thin wall food container mold must withstand high injection pressures. While standard molds operate at pressures around 10,000 to 15,000 pounds per square inch, thin wall molding often requires pressures two to three times higher. Tool steels such as stainless tool steel or pre-hardened mold steel are commonly specified, as these materials resist wear and maintain their shape under repeated high-pressure cycles. Hardened steel is used for high-cavitation molds that will run millions of cycles per year.

Cooling channel design is critical in a plastic injection thin wall food container mold because thin parts cool quickly but must cool evenly. Uneven cooling causes warping, which makes lids fail to seal and containers difficult to stack. Conformal cooling channels, which follow the shape of the container rather than being drilled in straight lines, provide more uniform temperature control. These channels are produced using additive manufacturing or by machining curved passages into the mold plates.

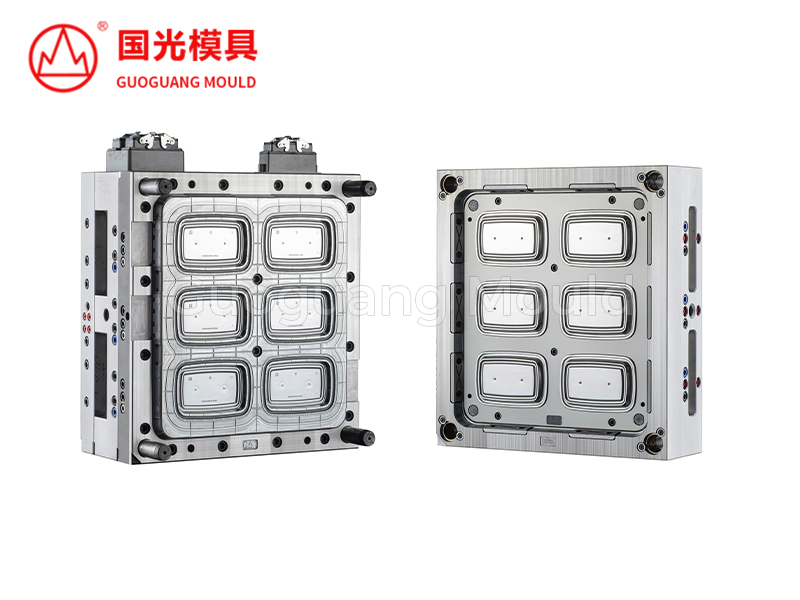

The number of cavities in a plastic injection thin wall food container mold directly affects production speed. A single-cavity mold produces one container per machine cycle. A four-cavity mold produces four containers per cycle, increasing output by roughly the same factor. High-volume production uses molds with eight, sixteen, or even forty-eight cavities, running on large injection molding machines with high clamping forces. Each additional cavity increases mold complexity and cost but reduces the cost per part.

Venting is another important feature of thin wall molds. The air inside the cavity must escape as the plastic rushes in, or trapped air will compress and burn, leaving black marks on the container surface. Thin wall molds use vents cut into the parting line, often only 0.02 to 0.04 millimeters deep. These shallow vents allow air to escape but are too narrow for molten plastic to enter. Some thin wall molds also use vacuum assist to remove air before injection begins.

For manufacturers serving the food packaging industry, the plastic injection thin wall food container mold represents a balance of speed, precision, and material savings. It runs fast, cools quickly, and ejects gently, turning plastic pellets into finished containers every few seconds. When the mold is built correctly and maintained properly, it produces millions of containers that keep food fresh and travel safely from kitchen to customer.
