Ice Cream Box Mold Enables Frozen Dessert Packaging

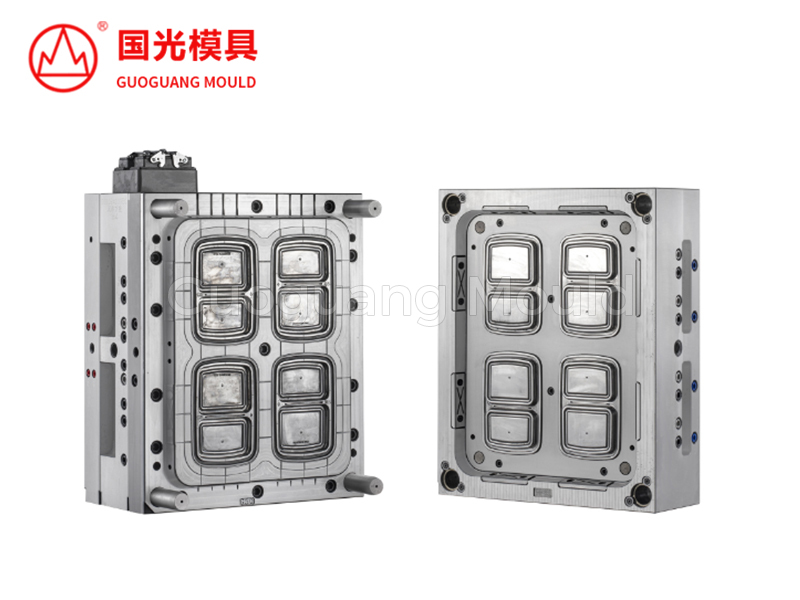

The ice cream box mold has become a standard tool in food packaging manufacturing facilities producing containers for frozen desserts. Unlike general-purpose molds that require significant adjustments for different box shapes, an ice cream box mold is engineered specifically for the rectangular geometry and lid-fit requirements found in ice cream cartons. Food packaging suppliers have ordered ice cream box mold systems to meet demand for both standard and family-size frozen dessert containers. The precision required for an ice cream box mold reflects the need for consistent wall thickness and flat lid-sealing surfaces that maintain product freshness during freezer storage.

Design considerations for an ice cream box mold begin with part geometry and material flow analysis. A properly engineered ice cream box mold incorporates gate locations that promote even filling of the cavity without creating visible weld lines or flow marks. The draft angle specified for an ice cream box mold typically ranges from one to two degrees per side, allowing the formed box to release without sticking or distortion. Cooling channel layout within an ice cream box mold affects cycle times, as efficient heat removal allows faster production rates in high-volume facilities. Computer simulation helps validate ice cream box mold design before steel cutting begins, reducing physical trial costs.

Steel selection for an ice cream box mold depends on expected production volume and the type of plastic being processed. Polypropylene, a common material for ice cream containers due to its cold temperature performance, requires an ice cream box mold with smooth cavity surfaces to allow easy part ejection. Hardened tool steel is specified for high-volume ice cream box mold applications where production runs exceed one million cycles. Stainless steel variants of the ice cream box mold offer corrosion resistance for facilities that use aggressive mould cleaners between production batches. Pre-hardened steel provides a cost-effective option for lower-volume ice cream box mold requirements.

Cooling channel layout presents particular challenges for an ice cream box mold due to the rectangular shape and varying wall thickness of the part. Conformal cooling channels placed close to the cavity walls reduce cycle times for the ice cream box mold by extracting heat more efficiently from corners and thick sections. Some manufacturers add baffles or heat pipes within the ice cream box mold to direct coolant flow to areas that conventional drilling cannot reach. Uniform cooling prevents warpage of the box walls and maintains flatness of the lid sealing surface. Thermal imaging of the ice cream box mold during trial shots identifies hot spots that require additional cooling capacity.

Surface finish requirements for an ice cream box mold relate to both part appearance and food safety. A polished cavity produces glossy box surfaces that resist ice crystal adhesion and clean easily during production. Food safety regulations influence the surface specification of an ice cream box mold, as rough surfaces can harbor bacteria between production runs. A texture finish applied to an ice cream box mold creates a matte surface that hides minor handling marks but may affect label adhesion.

Quality inspection of an ice cream box mold involves dimensional measurement of every cavity feature. A coordinate measuring machine verifies that the ice cream box mold produces parts within specified tolerances for length, width, wall thickness, and rim flatness. Trial shots using food-grade resin confirm fill patterns, cooling behavior, and part ejection. Properly validated ice cream box mold systems support efficient production of reliable frozen dessert containers. For food packaging engineers seeking durable tooling, the ice cream box mold provides a practical solution.
